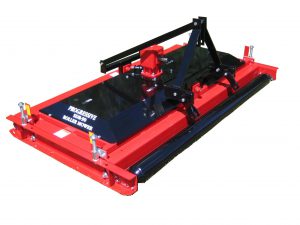

SDR-90

SDR-90

Single Deck Finishing Roller Mower

CUTTING WIDTH
90"
CUT HEIGHT RANGE
1/2" to 4"
RECOMMENDED PTO H.P.
35

Operator's / Parts Manual
Brochure
Picture Gallery
Model Specifications

OVERVIEW

Ideal for small test plots requiring the finesse of a quality roller mower, the Progressive SDR-90 is a three point hitch version of the popular tri-deck TDR-22 mower. It and it utilizes many of the same components making it the right choice for farms with larger progressive roller mowers. Not to be confused with other, light duty three-point hitch mowers that are available, the SDR-90 has a 6” diameter rollers on both the front and rear across the full width of the deck. The SDR-90 is “The Better Built Choice”.



BENEFITS

  • Blades:

    Ideal for smaller mowing jobs where a quality cut is mandatory, the SDR’s rollers allow you to cut as low as ½”. With three different styles of blade options available, the SDR-90 will give you the cut you want.
    READ MORE

  • Pro-Fore four blade system:

    Does your test plot need a finer cut? Progressive’s Pro-Fore blade system adds two additional Pro-EzII blade tips which effectively doubles the cut frequency, producing finer clippings.
    READ MORE

  • COMPONENT COMMONALITY:

    The SDR-90 has a lot that common with our larger tri-deck roller mowers. From an ownership perspective, it is comforting to know that the SDR-90 incorporates tried, true design and manufacturing techniques and the componentry all has a field proven history.
    READ MORE

  • Simpler Maintenance = Lower Cost:

    Maintenance Free Blade Spindles, 50 hr roller-end bearings are used to lower both the cost and time spent on routine maintenance.
    READ MORE

SPECIFICATIONS

Part Number:531990 (North America) 531990C (Worldwide)
Recommended PTO H.P.:35
Mowing Capacity: * (Assumes no overlap or turning)2 mph 1.8 acres per hour *
4 mph 3.56 acres per hour *
6 mph 5.33 acres per hour *
Cut Height Range:1/2" to 4"
Cutting Width:90"
Transport Width:92"
Weight:1380 lbs
Std. Equipment:
  • Heavy-duty construction, open rear discharge, easy cutting height adjustment
  • Heavy-duty 6” dia. rollers supported by 2 - 1.25” ductile HEX bearings.
  • Maintenance free blade spindle assemblies for reduced maintenance.
  • High lift blades for superior cut. Tip speed 18300 FPM.
Opt. Equipment:
  • 522365 24” Low Lift Blade (four required)
  • 522364 24” High Lift Blade (four required)
Disclaimer: Under our policy of continuous improvement, we reserve the right to change specifications and designs without prior notice. The illustrations shown do not necessarily represent the standard version of product offered by Progressive Turf Equipment Inc.

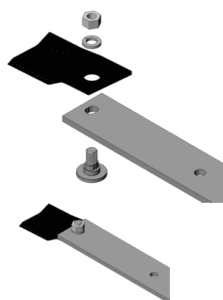

Options. That is what you get with the SDR-90; the ability to tailor the blade style to your unique needs. The SDR-90’s high tip speed is just the beginning of a quality cut. Using the same 24” blades used by Progressive’s larger roller mowers, (TDR-22, TDR-26, and TDR-30 models) you can equip the SDR-90 with one-piece or the popular replaceable tip option called Pro-EzII. These are available in either High or Low lift designs.

Now available for the SDR-90, TDR-22, TDR-26, and TDR-30 models is a four blade Pro-EzII system called Pro-Fore. Ideal on warm season grasses, Pro-Fore adds 2 more blades to each spindle (2 high lift and 2 flat) for a proven finer cut. SEE Pro-Fore BLADE PAGE on website. For convenience of changing between styles, all blade types mount to the same spindle without the need for adaptors.

The Progressive SDR-90 is a three point hitch version of the popular tri-deck TDR-22 mower and it utilizes many of the same components as the TDR-22, TDR-26 and TDR-30 finishing roller mowers . Not to be confused with other, light duty three point hitch mowers that are available, the SDR-90 has a 6” diameter rollers on both the front and rear across the full width of the deck.

Combining the maintenance free blade spindles and few grease fittings, provides a measure of comfort for the owner – gone is the fear that a missed service point by an un-familiar maintenance person will render the mower out of service and put production behind schedule.
